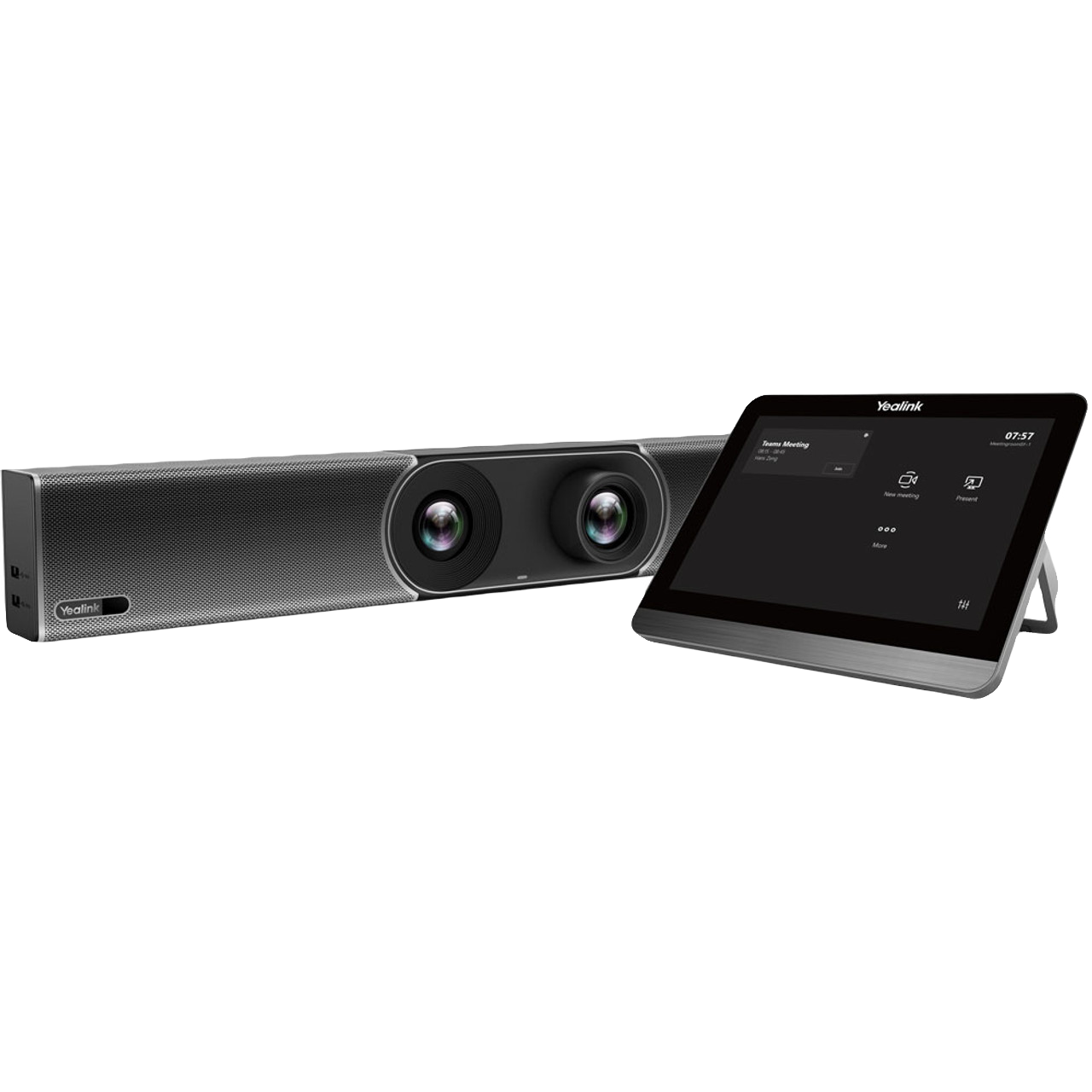

MeetingBar A30

Dual Camera System:

• Wide Camera:
  - 8MP Camera

  - Field of view: 120°

  - 4x e-PTZ Camera

• Telephoto Camera:

  - 8MP Camera
  - Field of view: 90°
  - 10x Hybrid Zoom (3.5x optical, 3x digital) - Horizontal Rotation Angle: +25°/-25°
  - Vertically Rotation Angle: +16°/-16°

• Electric Privacy Shutter

• Intelligence Features

  - Auto Framing
  - Speaker Tracking

Audio:

• Built-in 8 MEMS microphone array

• Support extention mic

• Two Built-in 5W high fidelity speaker

• Yealink Noise Proof Technology

• Beamforming directed voice pickup technology

• Full-duplex

• Echo cancellation

Operating System:

• Android 9.0

Meeting Features

• Calendar

• One-click join

• Meeting collaboration - Content sharing
  - Whiteboard

• Meeting control:
  - Add participates - Hold/Resume

• - Camera On/Off
  - Mute/Unmute
  - Volume Up/Down - Hang up

• Teams Edition

                  - Microsoft DM

                  - Proximity join

• Zoom Edition
  - Zoom DM
  - Direct sharing

Video Standard and Network Suitability:

• Video codecs: H.264 High profile, H.264 SVC, H.264

Network and Security Features:

• Built-in dual-band Wi-Fi (2.4GHz/5GHz)

• Built-in Bluetooth

• IPv4 and IPv6, DHCP/static IP

• HTTP/HTTPS web server

• SRTP/TLS, AES 256-bit encryption

• QoS: 802.1p/q, Diff-serv

• VLAN, LLDP

• IEEE802.1X
  - EAP-MD5/EAP-TLS
  - PEAP-MSCHAPv2
  - EAP-TTLS/EAP-MSCHAPv2

• Network diagnosis: Ping, Trace route

• Time and date synchronization using SNTP

• Built-in certificate

• Simple Certificate Enrollment Protocol (SCEP)* coming soon

Connections:

• 2 x HDMI output (CEC supported)

• HDMI input (through the VCH51 Sharing Kit)

• 1 x Line-in (3.5mm)

• 1 x Line-out (3.5mm)

• 2xUSB2.0

• 1 x 10/100M/1000M Ethernet port

• 1 x Yealink extension port (RJ-45)

• 1xPowerport

• 1 x Security lock slot

• 1xResetslot

Other Physical Features:

• External Yealink Power Adapter: AC 100~240V input and DC 48V/0.7A Output
• USB Output: 5V 0.5A • Power consumption (PSU):
• Idle < 13W; Normal operating: 15W; MAX: 16W • Dimension (W.D.H): 700 mm x 98 mm x 121 mm • Operating humidity: 10~95%
• Operating temperature: 0~40°C
• Storage temperature: -30~70°C

MeetingBar A30 Package

• Package contents:
  - MeetingBar A30 endpoint
  - 3m Ethernet cable
  - 2 x 1.8m HDMI cable
  - Mounting Bracket and Accessories - Power adapter
  - Quick Start Guide
  - Controller (optional):

  CTP18 Touch Panel

  VCR20 Remote Control
  - Content sharing(optional):

  VCH51 Sharing Kit (HDMI/USB-C) 2 WPP20 Wireless Presentation Pod
